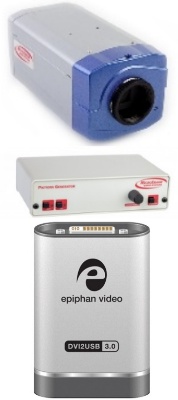

The HDC840 provides full HD 1920 x 1080 resolution at 60Hz (1080p60) with true 16:9 ratio widescreen and square pixels providing accurate aspect ratios. The CCU840 Camera Control Unit is included, simplifying control of camera functions. The HDMI output of the camera connects via supplied cabling to an Epiphan DVI2USB 3.0 frame grabber. The fully featured Epiphan Capture Tool, supporting both Windows and Mac OS, captures both images and video in addition to audio.
The HDC840 is professional scientific grade, based on a 1/2.8” Sony 3.0 Megapixel Exmor CMOS sensor, with 0.1 Lux color/0.01 Lux mono minimum illumination and a Digital Wide Dynamic Range setting. The lens mount is C/CS compatible (threaded mount) and the camera includes an auto-iris connector for use with compatible lenses. 12VDC power supply is included. OSD Control using the CCU840 provides access to camera menu functions including shutter speed, white balance, gain, sharpness, video modes and more.
